Sub Micro Digital Servo for Radio Control 1242 H PC-M Protronik

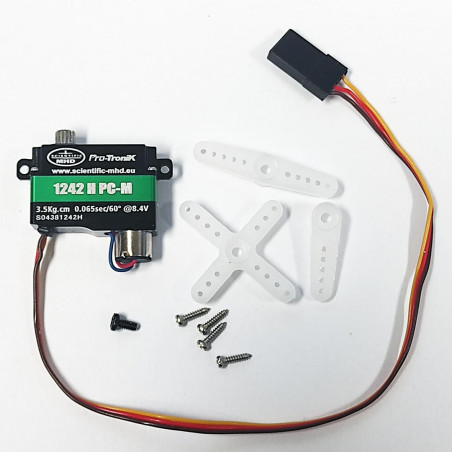

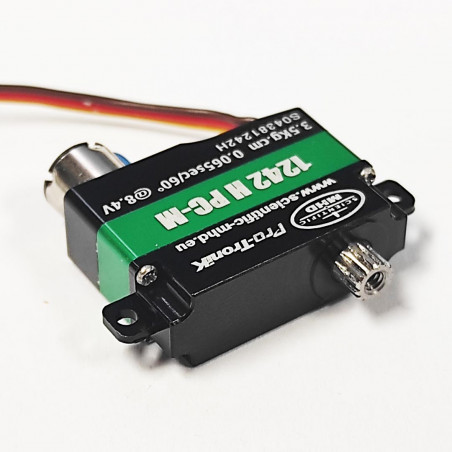

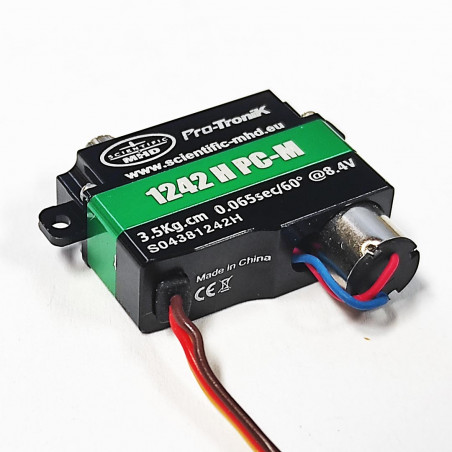

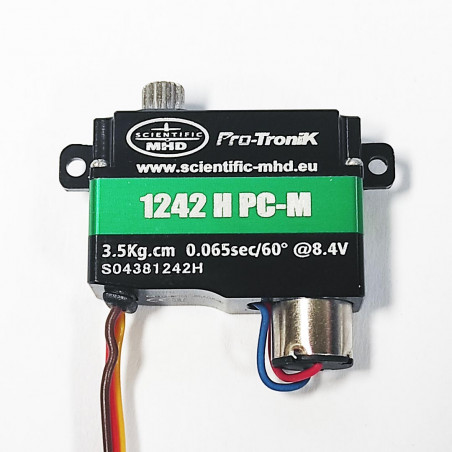

PTK Sub Micro Digital Servo 1242 H PC-M

Ultra-high-end servo specially developed for use in DLG, F3L F5L F5b gliders, equivalent to the KST X08.

Flat-mount model

Everything in this servo has been designed to deliver the best performance.

Its low profile allows it to be mounted in composite glider wings.

High-quality electronics, potentiometer and motor.

Metal gears mounted on two bearings for robustness, precision and reliability.

Digital

Programmable: ProTronik programming card (ref. S04379999)

EXCLUSIVE: This servo is developed and manufactured by ProTronik.

• Gears: stainless steel
• Bearings : YES 2
• Weight : 8g
• Dimensions: 23.5 x 16.8 x 8 mm
• Torque / Speed at 3.8V: 2.6kg/cm - 0.175s/60° Torque / Speed at
• Torque / Speed at 6.0V: 3kg/cm - 0.083s/60°
• Torque / Speed under 8.4V: 3.5kg/cm - 0.065s/60°
• Operating voltage: 3.8V - 8.4V
• Cord: 200mm
• Plug: JR universal
• Dead band: 3µs
• Electrical accuracy: 2µs
