RC boat engine
S02120215
Steam engine heat engine Anna version 2 steam engine
€399.95
VAT included
Steam engine heat engine Anna version 2 steam engine
€399.95
Shipping within 48 hours
343334 products in stock
Customer service
Secure payment
New Edition! Now available again.

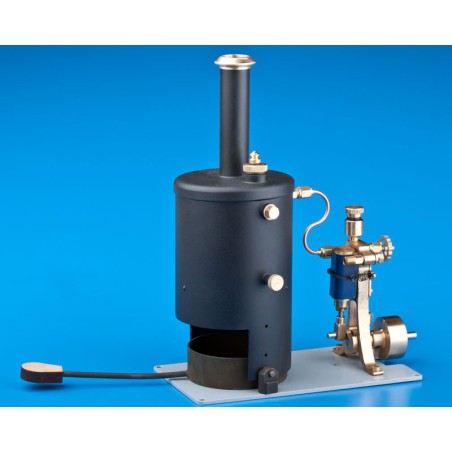

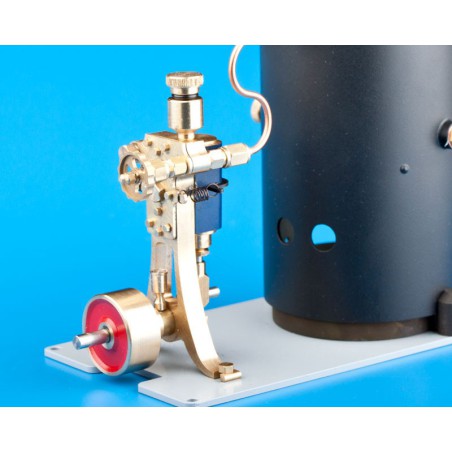

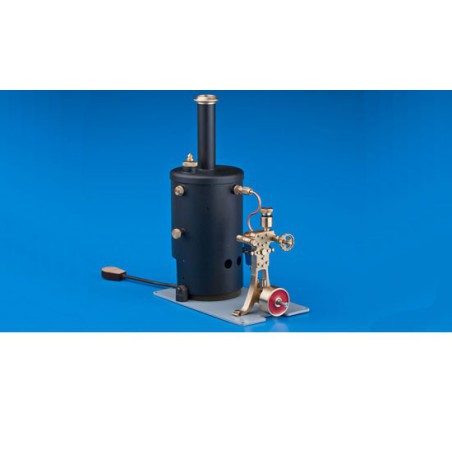

This single-cylinder steam engine was developed mainly as a propulsion for our steamship Anna. With its compact design and stagnant boiler, the steam engine is a real eye-catcher and a technical highlight for the small steamboat. Of course, the machine is also suitable as a drive other model boats with about 50 cm in length or displacement of 1-2 kg.
The steam engine is delivered completely pre-assembled. The boiler is ready soldered, pressure tested and painted. The steam line is already installed. The operation was deliberately kept very simple. Fill water into the boiler, heat up and start the machine on the flywheel. About the small handwheel still the amount of steam can be adjusted and off you go. Esbit tablets are used as fuel.
Including the delivery
Technical specifications
This single-cylinder steam engine was developed mainly as a propulsion for our steamship Anna. With its compact design and stagnant boiler, the steam engine is a real eye-catcher and a technical highlight for the small steamboat. Of course, the machine is also suitable as a drive other model boats with about 50 cm in length or displacement of 1-2 kg.
The steam engine is delivered completely pre-assembled. The boiler is ready soldered, pressure tested and painted. The steam line is already installed. The operation was deliberately kept very simple. Fill water into the boiler, heat up and start the machine on the flywheel. About the small handwheel still the amount of steam can be adjusted and off you go. Esbit tablets are used as fuel.
Including the delivery
- Steam engine with boiler mounted on the floor panel
- Fire bowl with handle
- Evaporating pipe with union nut
- Steam oil
- Syringe for filling in the water
- Manual
Technical specifications
- Dimension base plate approx. 135x70 mm
- Total height about 170 mm
- Total length about 182 mm
- Height steam engine about 83 mm
- Wide steam engine about 54 mm
- Weight empty approx. 600 g
- Diameter output shaft 4 mm
- Height of output shaft measured about 15 mm from the bottom plate
