Servos for radio control PTK Servo Low Profile Digital Coreless 9752 TG-D

Pro Tronik Low profile Digital Coreless Servo 9752 TG-D.

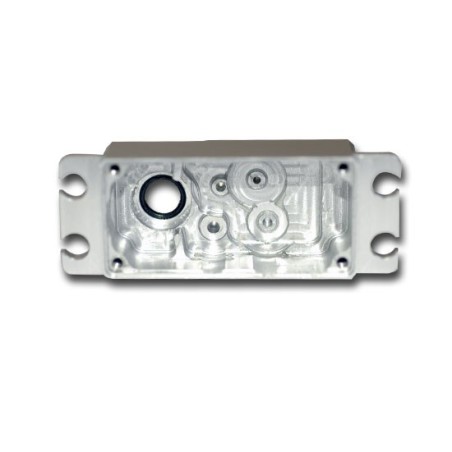

Top-of-the-range low-profile servo, aluminium housing, powerful, fast, waterproof, perfectly suited to 1/8 cars or any other application requiring a quality servo.

Speed, torque, precision!

Coreless motor with CNC-machined cage

Digital

Waterproof

Programmable: Pro-Tronik programming card (ref. S04379999)

"2S Lipo Ready: optimised performance at 4.8V, 6V or 7.4V. HV for everyone!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

Because of their high power, for conventional use without HV, these servos require a quality power supply such as LiPo 2S + 6V regulator.
The perfect compromise is achieved with the LVR (ref. S03878505) and a 2S 2600mAh LiPo receiver pack (ref. Z03L92605).

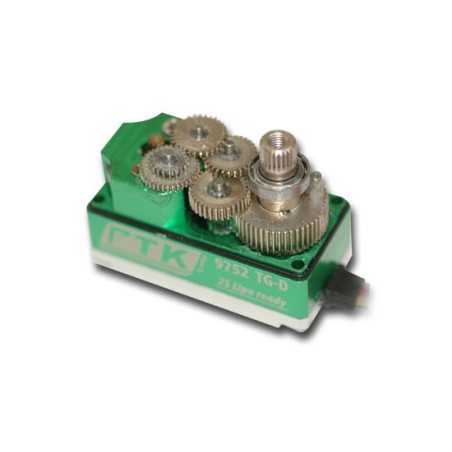

    Sprockets: Titanium
    Bearings: YES 2
    Motor : Coreless
    Weight : 60.2 grs
    Dimensions: 40.6 x 27.8 x 20mm
    Torque / Speed at 4.8V : 13kg/cm - 0.14 sec/60° (0.14 sec/60°)
    Torque/speed at 6.0V: 18kg/cm - 0.12 sec/60°.
    Torque / Speed at 7.4V: 23kg/cm - 0.10sec/60°.
    Operating voltage: 4.8V - 8.4V
    Cord length: 250mm
    Plug: JR universal
    Dead band: 2µs (Adjustable)
    Electrical accuracy: 1.2µs (Adjustable)
