Servos for PTK SERVO SERVO DIREC NUMELESS 9840 TG-D radio controller

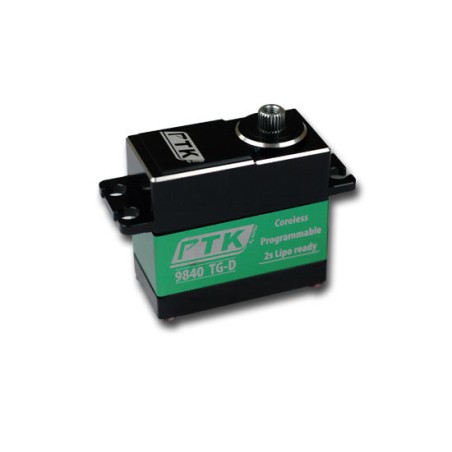

PTK Coreless 9840 TG-D Digital Standard Servo

Top-of-the-range servo, aluminium housing, hyper-powerful, fast, waterproof, perfectly suited to 1/8 cars or any other application requiring a quality servo.

Torque, speed, precision!

Everything about this servo, with its exceptional torque of 30kg, has been designed to satisfy the most demanding customers.

Coreless motor with CNC-machined cage

Digital

Waterproof

Programmable: Pro-Tronik programming card (ref. S04379999)

"2S Lipo Ready: optimised performance at 4.8V, 6V or 7.4V. HV for everyone!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

Because of their high power, for conventional use without HV, these servos require a quality power supply such as LiPo 2S + 6V regulator.

The perfect compromise is achieved with the LVR (ref. S03878505) and a 2S 2600mAh LiPo receiver pack (ref. Z03L92605).

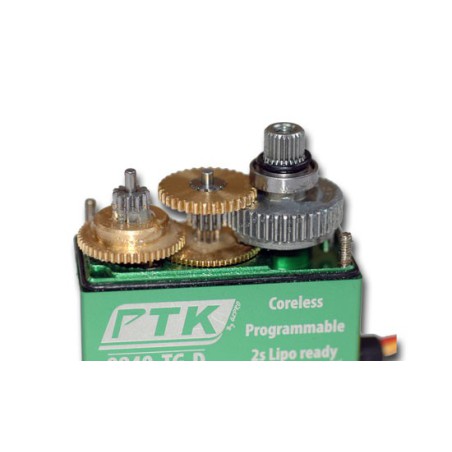

    Sprockets: Metal Titanium

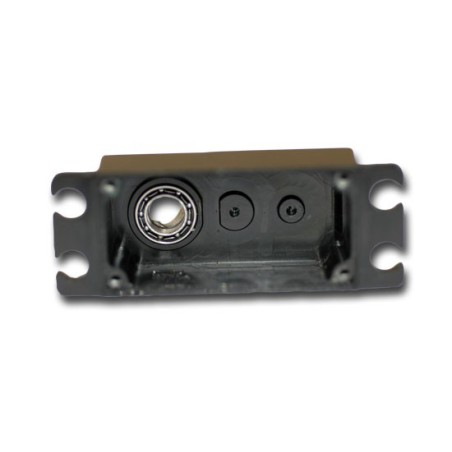

    Bearings: YES 2
    Motor : Coreless
    Weight : 71 grs
    Dimensions : 40.5 x 38.3 x 20mm
    Torque / Speed at 4.8V : 23kg/cm - 0.14 sec/60° (0.14 sec/60°)
    Torque/Speed at 6.0V: 26kg/cm - 0.12 sec/60°.
    Torque/Speed at 7.4V: 30kg/cm - 0.11 sec/60°.
    Operating voltage: 4.8V - 8.4V
    Cord length: 250mm
    Plug: JR universal
    Dead band: 2µs (Adjustable)
    Electrical accuracy: 1.2µs (Adjustable)
