Servos for pro-tronik micro servo num. Coreless 9497 MG-D

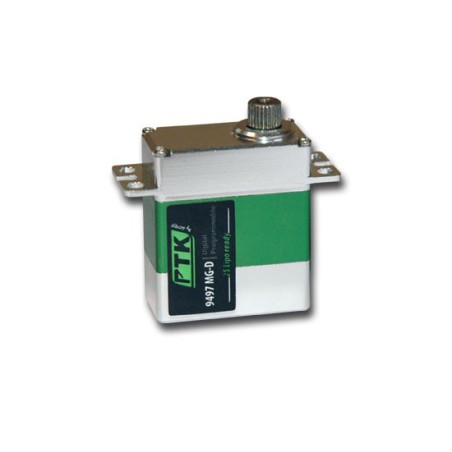

Pro-Tronik Micro Servo Numérique Coreless 9497 MG-D

Pro-Tronik Digital 9497 MG-D ultra-high-end servo specially developed for use in gliders or any other application requiring power, precision and reliability.

Ultra-high-end servo specially developed for use in gliders or any other application requiring power, precision and reliability.

The 9497 MG-D is the most powerful servo in its class on the market.

Everything about this servo has been designed to deliver the best performance.

Its slim design means it can be fitted in composite glider wings.

High-quality electronics, potentiometer and motor.

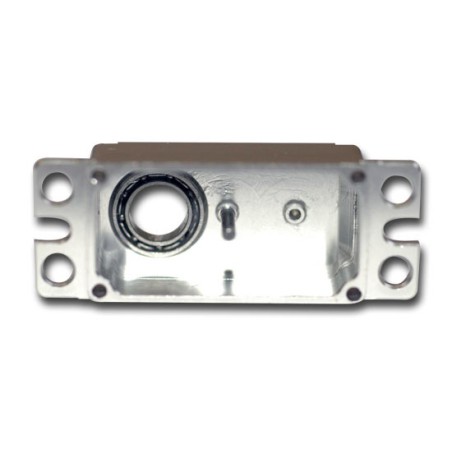

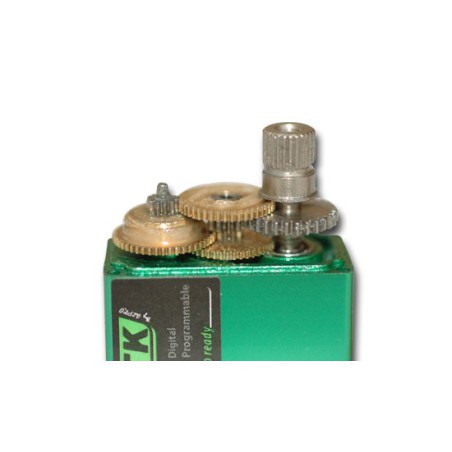

Metal gears mounted on two bearings for robustness, precision and reliability.

Digital

Programmable: Pro-Tronik programming card (ref. S04379999)

"2S Lipo Ready: optimised performance at 4.8V, 6V or 7.4V. HV for everyone!

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik.

• Pignons : METAL
• Roulements : OUI 2
• Moteur : Coreless
• Poids : 19,2g / 0,68oz
• Dimensions : 22.9 x 26 x 11.9 mm
• Couple / Vitesse sous 4.8V : 5,4kg/cm - 0,11s/60°
• Couple / Vitesse sous 6.0V : 6,8kg/cm - 0,09s/60°
• Couple / Vitesse sous 7.4V : 8,6kg/cm - 0,08s/60°
• Tension d'utilisation : 4,8V - 8,4V
• Cordon : 225mm
• Prise : JR universelle
• Dead band : 1µs
