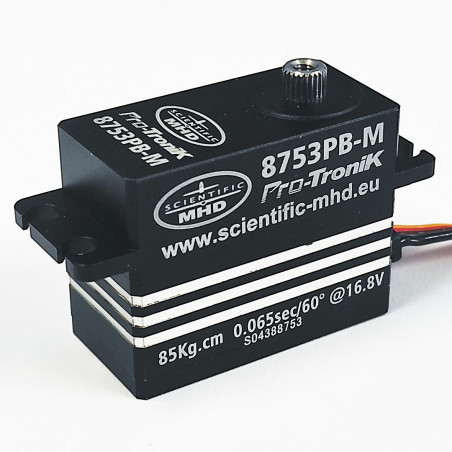

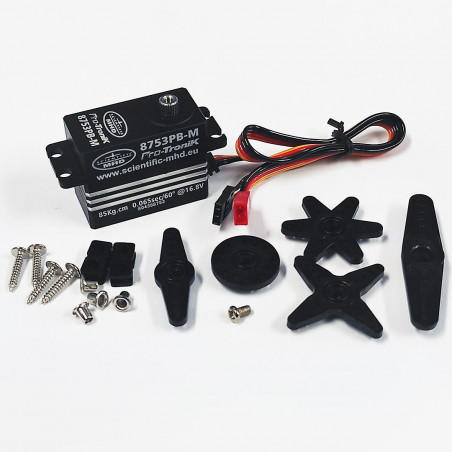

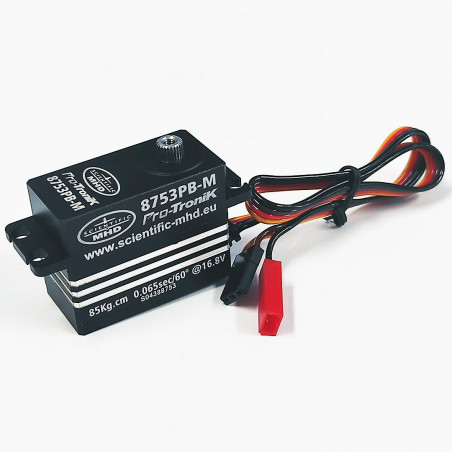

Servo for radio control Standard digital brushless servo 8753 PB-M 85kg

Radio control Standard digital brushless servo 8753 PB-M 85kg

Top-of-the-range servo, aluminum housing, hyper-powerful, fast, waterproof, perfectly suited to 1/5 cars or any other application requiring a quality servo.

Impressive torque, speed, precision!

Everything about this servo, with its exceptional 85kg of torque, has been designed to satisfy the most demanding customers.

Brushless motor

Digital

Waterproof

Programmable: Pro-Tronik programming card (ref. S04379999)

EXCLUSIVE: This servo is developed and manufactured by Pro-Tronik

WARNING: This servo must be directly powered by a battery delivering a voltage between 8.4 and 16.8 Volts.

⁃ Sprockets : Stainless steel

⁃ Bearing: YES 2

⁃ Motor: Brushless

⁃ Weight: 80 grs

⁃ Dimensions: 40.5 x 32 x 20mm

⁃ Torque / Speed under 8,4V : 55kg/cm - 0.130 sec/60°

⁃ Torque / Speed under 12.8V: 75kg/cm - 0.085 sec/60°

⁃ Torque / Speed at 16.8V: 85kg/cm - 0.065 sec/60°

⁃ Operating voltage: 8.4V - 16.8V direct connection to servo

⁃ Cord length: 300mm

⁃ Plug: JR universal

⁃ Dead band : 3µs (Adjustable)

⁃ Electrical accuracy: 2µs (Adjustable)
