Radio heat engine GF 30 II petrol +F-6040

GF 30 II + F-6040

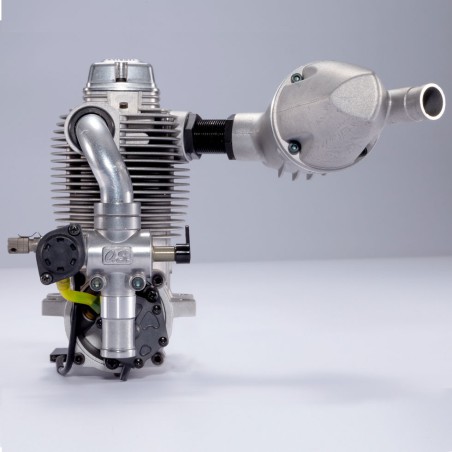

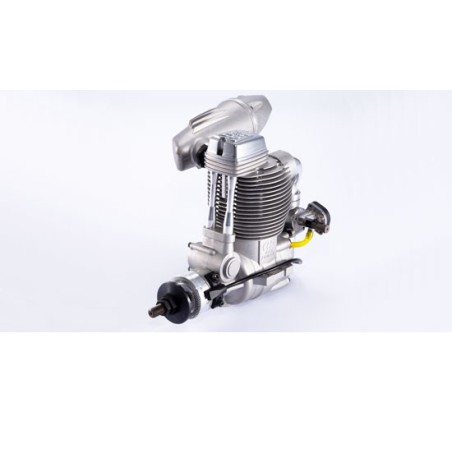

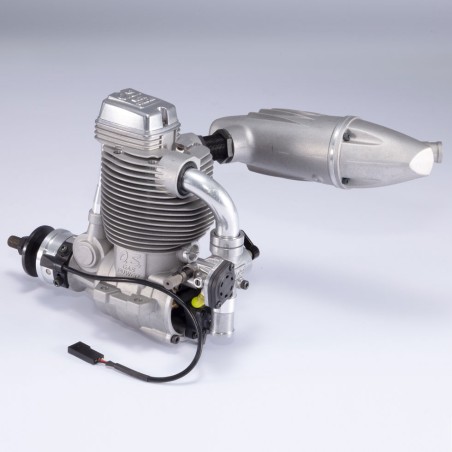

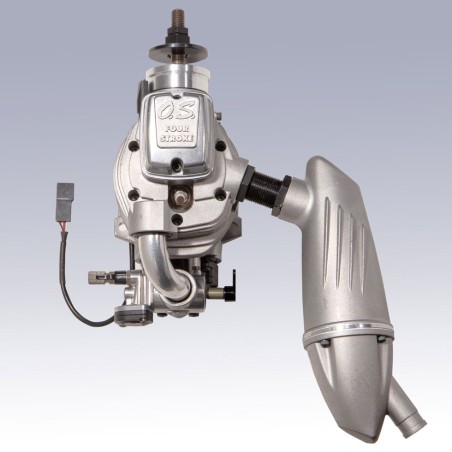

There are many attractive airplanes for 4 stroke 120/150 size glow engine in the market. GF30II perfectly fits airplanes in this category. The new carburetor 70T is designed for easy adjustment and stability. IG-07 ignitor has applied a new plug cap for easy fit to a spark plug. The plug cap moves freely on the spark plug so that you can decide the best angle of it depending on layout. The F-6040 silencer muffles the noises and creates typical 4-stroke exhaust sound. Linear throttle response is suitable for both scale and aerobatic airplanes.

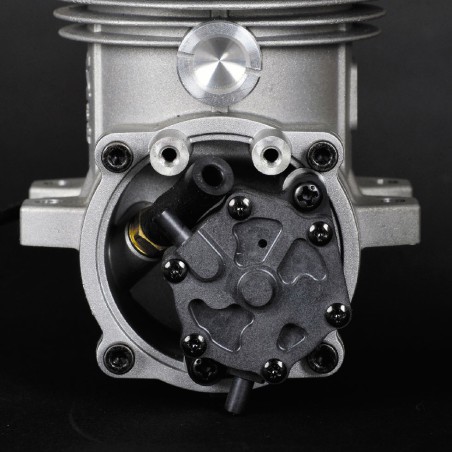

The new pump PD-09 supplies fuel consistently regardless of the orientation of an airplane.

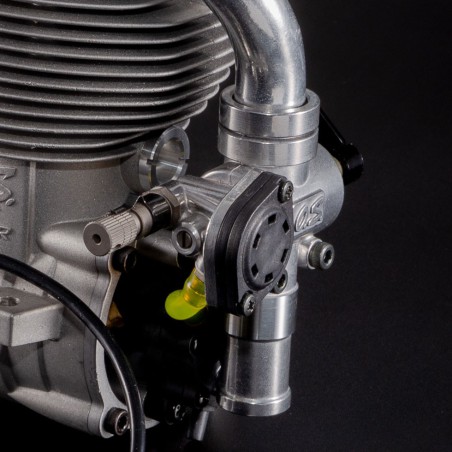

The carburetor has a built-in regulator. The metering needle and the rotor are modified for easier adjustment and stability.

The F-6040 silencer muffles the noises and creates typical 4-stroke exhaust sound

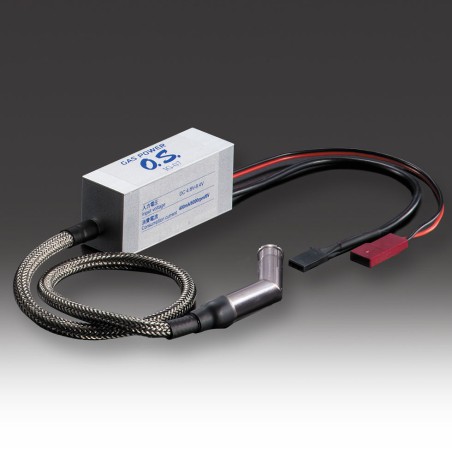

G-07 ignitor has applied a new plug cap for easy fit to a spark plug. The plug cap moves freely on the spark plug so that you can decide the best angle of it according to the layout.

Specifications

• Displacement : 29,94cc
• Bore : 38mm
• Stroke : 26,4mm
• Output : 2,76hp @ 9000tr/min
• Pratical range : 2500-18000tr/min
• Weight : 1010g (motor), 113g (silencer), 95g (igniter)
