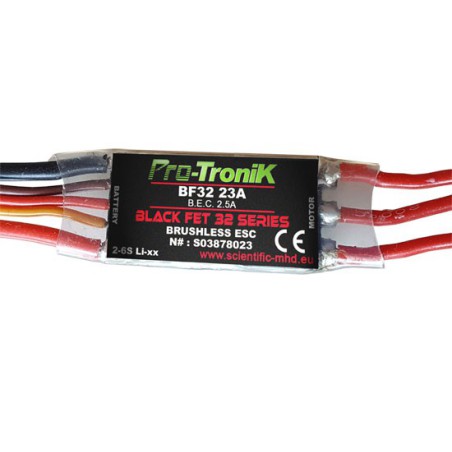

Radio-controlled electric motor BF32-23A variator

NEW Controller BF32-23A - BF32 series

Very small and light, these new generation controllers are both very efficient and powerful.
The 32-bit ARM processor with which they are equipped ensures extremely precise motor control, particularly high motor efficiency and optimum battery safety, keeping the pack in top performance conditions.
In order to facilitate their use, the Pro-Tronik controllers offer many adjustable parameters, allowing their operation to be precisely and efficiently adapted to the engine, battery and model, whatever its type (airplane, glider, drone). , boat, car, etc.).
Pro-Tronik controllers are exclusively intended to drive a brushless type electric motor installed in a scale model via a proportional radio control assembly.
Pro-Tronik controllers can supply the motor to control the continuous current, the value of which is listed on the label (example: 23 A for the BF32-23), prod they are properly ventilated.

Technical characteristics:

• 23A controller for brushless motor
• BEC output 5.5V 2.5A (4A max)
• Power supply from 2 to 6s LiPo
• Dimensions: 30 x 14 x 4mm
• Mass 12g
• Easy programming from your computer or smartphone / tablet thanks to the S03878035 interface (sold separately)
• Or classic "beep" programming using your transmitter

Recommended motors for BF32-23A controller: 2210-1700, 2215-750, 2215-950, 2215-1150, 2220-1100, 2220-1500, 2610-900
