Model aerograph Large 220V air/water paint booth

Large 220V air/water paint booth

New double air/water filtration paint booth

The new filtration system with air filter and water tank retains the finest particles that can be harmful to health.

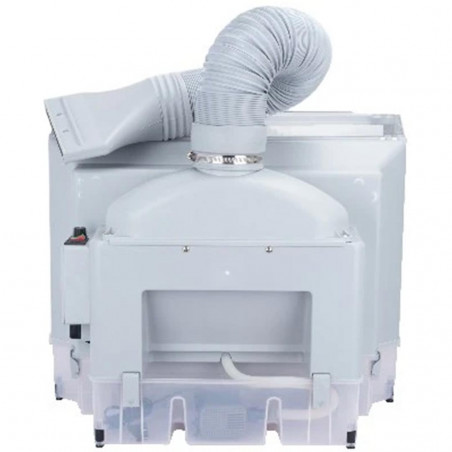

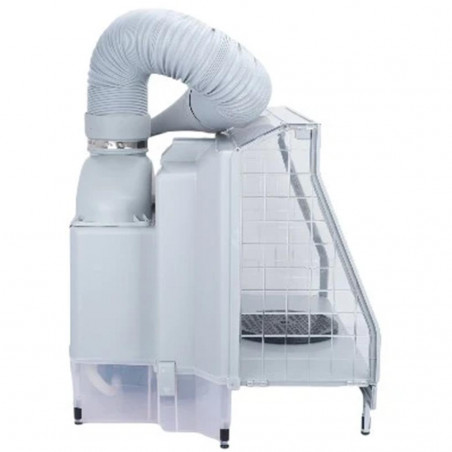

The 3 fans have an air extraction rate of 11 cubic meters per minute, so there's no risk of dust settling on your paintwork. Extractor hose included for external exhaust.

Integrated LED lighting on three sides lets you see every detail of your precision work.

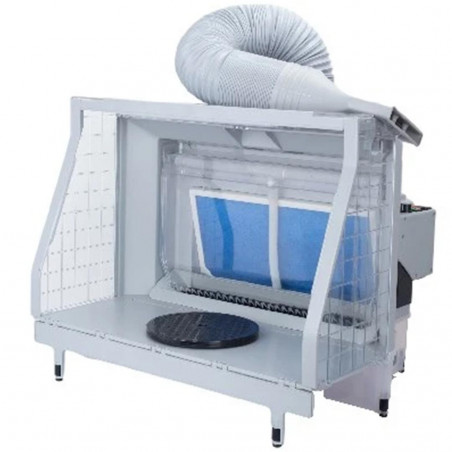

The turntable makes it easy to handle your painting objects. No risk of fingerprints.

Technical specifications of the paint cabin:

• Dimensions in use: 600x490x500mm
• Dimensions when folded: 600x270x460mm
• Water tank capacity: 10L
• Water pump output: 15l/minute
• Air intake: 11m3 per minute
• Noise level: 53db

An Innovative Solution for Using an Airbrush at Home

Whether you are an occasional or frequent user of an airbrush at home, you have probably encountered difficulties in quickly and efficiently removing spray mist and fumes. This is a common problem, but there is an innovative solution: our paint booth. This revolutionary device in the field of airbrushing is designed to deliver high-level performance.

Operation of the Suction System with Water Shield

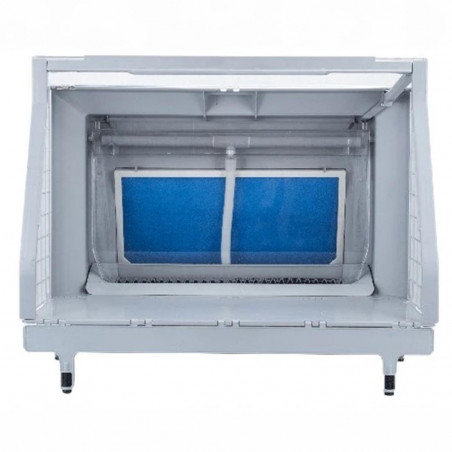

The paint booth uses a suction system equipped with a water shield or wall. Unlike traditional dry filtration systems, this booth uses water as the primary filter to capture spray mist. This unique process effectively prevents the spread of paint mist in your workspace.

The process is quite simple: mist and fumes are sucked into the booth and directed towards a water curtain that flows over a glass pane. This water, loaded with paint particles, is then routed to a collector with fine pores.

The paint residues settle in the collector tank and can be removed periodically, depending on the intensity of booth usage.

This system ensures a clean and pollution-free working environment.

Efficiency in Fume Extraction

The paint booth is not only effective for airbrushing. Thanks to its powerful fans and water wall, it is also particularly useful for welding fume extraction. These fumes, which form during soldering work with tin and lead, as well as during the use of certain paints and adhesives, can be harmful. The paint booth captures and removes these fumes, creating a healthier working environment.

Integrated LED Lighting

One of the additional advantages of this booth is its integrated LED lighting. With high luminous intensity, this lighting can be activated independently of the suction function. You can use it as needed without adding an additional light source. This lighting is particularly useful for precision work, allowing you to clearly see your project in progress.

Flexibility and Customization

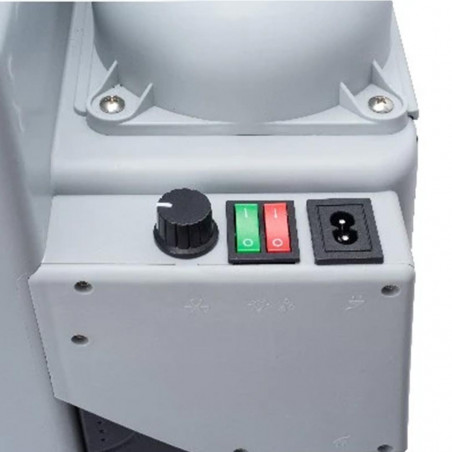

The paint booth is designed to be flexible and adaptable to your specific needs. It is equipped with a fan adjustment and a light switch for full control of the device. Additionally, the adjustable feet allow you to stabilize the booth on any surface. Another practical element is the rotating piece, which facilitates the machining of your projects from all sides.

Easy Installation and Use

The paint booth comes with a connection kit, making installation simple and quick. The evacuated air is directly, quickly, and completely sucked out via this kit, ensuring efficient and hassle-free evacuation. The paint booth is designed for home use but offers professional performance.

Conclusion

In summary, our model paint booth is an ideal solution for those who use an airbrush at home and are looking for an effective way to remove spray mist and fumes.

With its water shield suction system, powerful fans, integrated LED lighting, and flexible design, it meets all your needs optimally.

Whether you are working on airbrushing projects, welding, or other applications requiring fume extraction, this booth is the perfect tool to ensure a clean, safe, and well-lit working environment.

Note: Not indented for use with hazardous materials, flammable or explosive paints or materials.
