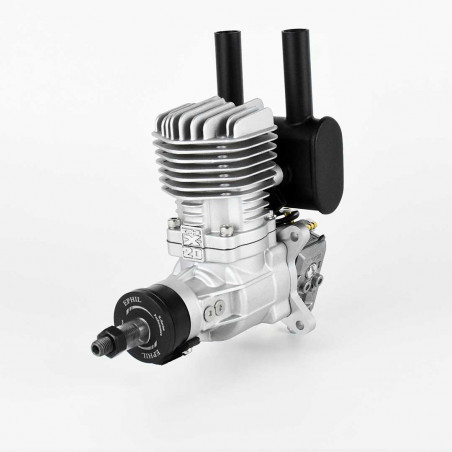

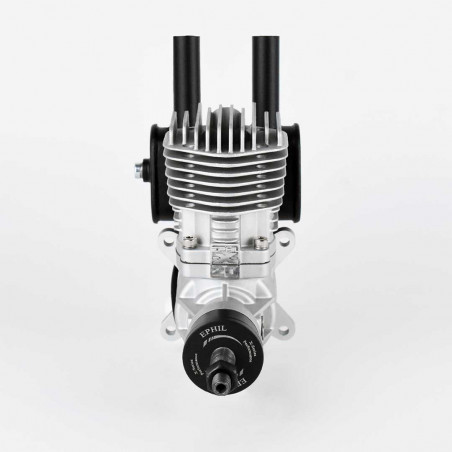

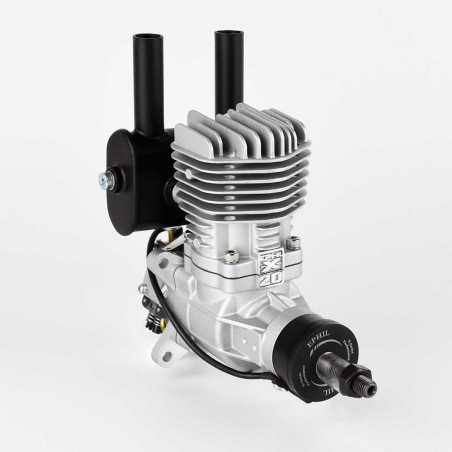

EPHIL 20cc single-cylinder rear-exit petrol engine for airplanes

EPHIL 20cc single-cylinder rear-exit petrol engine for airplanes

New range of petrol engines for radio-controlled aircraft

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

The exhaust is fitted with a connector to allow the use of smoke.

Electric starter can be fitted without modification.

An electric starter can be retrofitted by our company (subject to conditions).

If you wish to have an electric starter on your engine, it is preferable to opt for a PRO series engine when you purchase your engine.

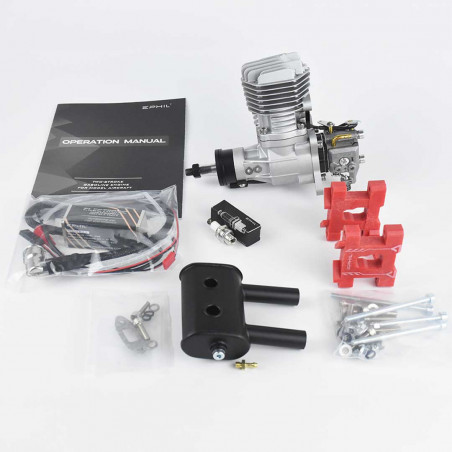

Included in the box:

- X-20cc-R rear-exit engine with Walbro carburetor

- Muffler with gasket and mounting screws

- CM-6 Iridium spark plug

- Electronic ignition module

- Engine mount

- User's manual

Technical specifications :

- Displacement: 20cc

- Bore: 32mm

- Stroke: 27mm

- Power: 2.5hp

- Speed range: between 1800 and 8600 rpm (16x8 propeller)

- Ignition module supply voltage: between 6 and 14V

- Recommended 2-stroke oil mixture: 3.33%.

- Compatible propellers: 14x10 / 15x8 / 16x6 / 16x8 / 17x6

- Weight of motor alone: 697g

- Silencer weight: 62g

- Engine mount weight: 115g

- Ignition module weight: 104g
