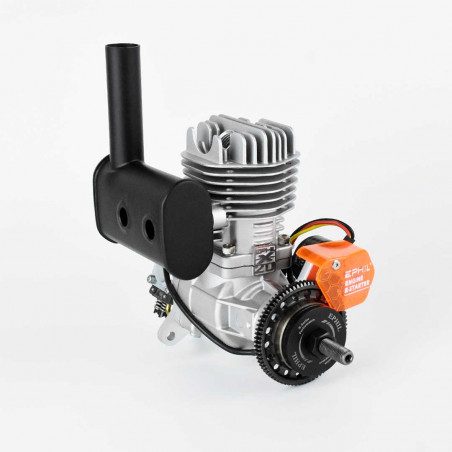

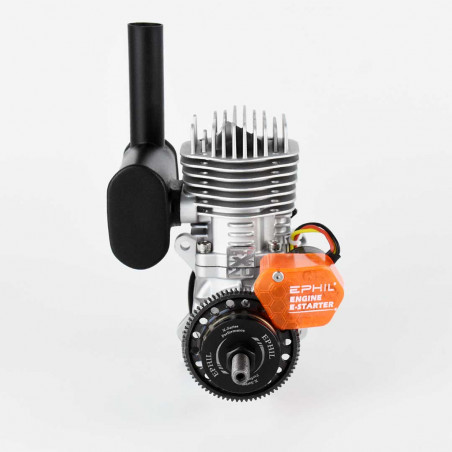

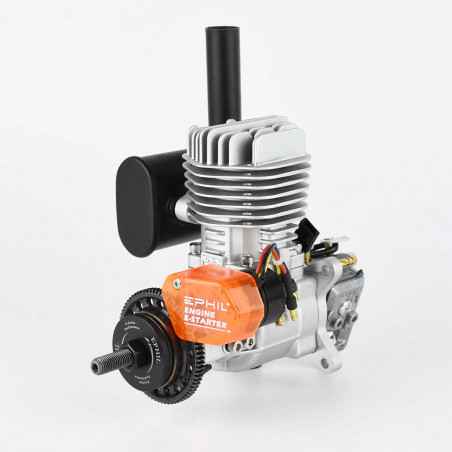

EPHIL 20cc PRO single-cylinder side-exit petrol aircraft engine with starter motor

EPHIL 20cc PRO single-cylinder side-exit petrol aircraft engine with starter motor

New range of petrol engines for radio-controlled aircraft.

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plug.

PRO series equipped with electric starter.

Exhaust is fitted with a connector for the use of smoke.

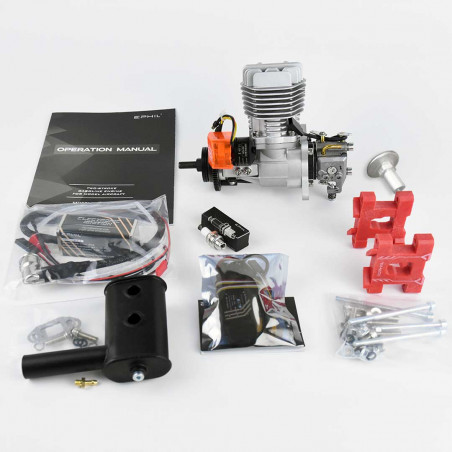

Included in the box:

- X-20cc-S side-exit engine with Walbro carburetor and starter motor

- Muffler with gasket and mounting screws

- CM-6 Iridium spark plug

- Electronic ignition module

- Starter controller

- Engine mount

- Owner's manual

Technical specifications :

- Displacement: 20cc

- Bore: 32mm

- Stroke: 27mm

- Power: 2.5hp

- Speed range: between 1800 and 8600 rpm (16x8 propeller)

- Ignition module supply voltage: between 6 and 14V

- Recommended 2-stroke oil mixture: 3.33%.

- Compatible propellers: 14x10 / 15x8 / 16x6 / 16x8 / 17x6

- Weight of motor alone: 697g

- Silencer weight: 62g

- Engine mount weight: 115g

- Ignition module weight: 104g

- Starter weight: 85g

- Starter controller weight: 36g
