EPHIL 123cc twin-cylinder PRO aircraft petrol engine with starter motor

EPHIL 123cc twin-cylinder PRO aircraft petrol engine with starter motor

New range of petrol engines for radio-controlled aircraft

Equipped with quality components, NSK bearings, Walbro carburetor, CM6 Iridium spark plugs.

The exhaust is fitted with a connector to allow the use of a smoke generator.

If you wish to have an electric starter on your engine, it is preferable to opt for a PRO series engine when you purchase your engine.

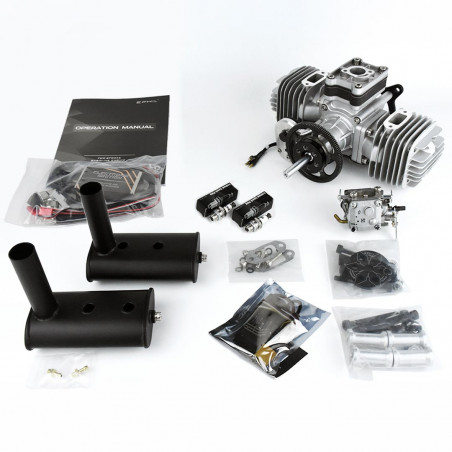

Included in the box:

- An X-123cc-T twin-cylinder Pro engine with Walbro carburetor and starter.

- Two silencers with gaskets and fixing screws

- Two CM-6 Iridium spark plugs

- Electronic ignition module

- Starter controller

- Engine mount (spacers)

- User's manual

Technical specifications :

- Displacement: 123cc

- Bore: 47mm

- Stroke: 35mm

- Power: 12.2hp

- Speed range: between 1500 and 6650 rpm (27x10 propeller)

- Ignition module supply voltage: between 6 and 14V

- Recommended 2-stroke oil mixture: 3.33%.

- Compatible propellers: 26x10 / 26x12 / 27x10 / 28x10

- Weight of engine alone: 2677g

- Silencer weight: 228g

- Engine mount weight: 130g

- Ignition module weight: 173g

- Starter weight: 253g

- Starter controller weight: 36g
