AP410AC - Multi-Function Charger (NiMH, LiFe, LiPo)

• Input Voltage: 110 to 240 V AC
• Supported Battery Types: NiMH, NiCd, LiPo, and LiFe
• Number of NiMH/NiCd Cells: 1 to 10
• Number of LiPo/LiFe Cells: 2 to 4 cells
• Charging Current: 0.25 to 5.0 A
• Charging Power: Max 50 W
• Balancing Current (LiPo): < 500 mA max
• Display Indicators: Operating mode indicator / Battery type indicator / Number of Lixx cells indicator

The charger features multiple automatic functions that adjust the current and voltage during the charging process.

For lithium cells, the charger employs a secure process that significantly reduces the risks of overcharging and explosions, which are typically caused by user programming errors (only when using the balancing connectors of lithium battery packs).

The Pro-Tronik charger integrates a next-generation balancing circuit that continuously monitors and balances each lithium cell in real-time, ensuring an optimized and safe charging process.

We recommend not charging Li-Po batteries beyond 2200mA and Ni-Mh batteries beyond 2500mA.

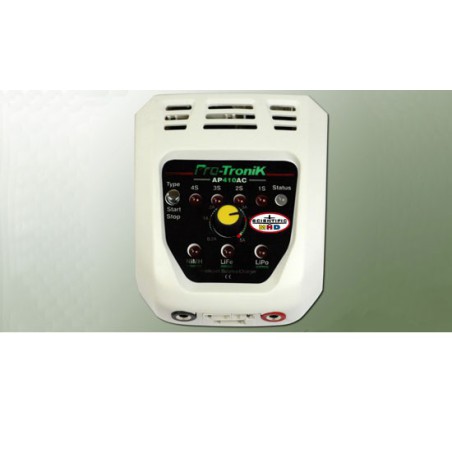

The Pro-Tronik AP410AC charger allows for charging NiMH, LiFe, or LiPo battery packs.
